High Quality Coupling Sleeve For Connecting Drill Bit And Rod

Coupling sleeves, other name is Coupling, when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod, ensuring the ends touch for efficient energy transmission.

R25 R28 R32 T38 T45 T51 Coupling Sleeves are also used to connect several rods to each other in the same way. Couplings have a middle stop to prevent over-threading on to the drill rod. Jinzen Drilling manufactures semi-bridge, full bridge coupling sleeves for the percussive tools.

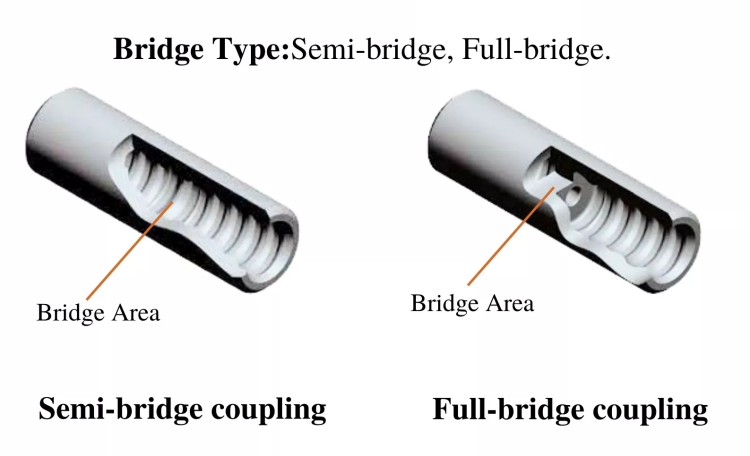

Semi-Bridge Coupling sleeve

- Small non-threaded bridge in the center

- Steel cannot thread past bridge area

- Smaller diameter steel end portions fit together in the center bridge area of the coupling

- Semi-bridged couplings are most suited to high torque machines

- Most rope and T threaded couplings are semi-bridged

Full-Bridge Coupling sleeve

- Eliminates the potential for the coupling to creep along the threaded joints

- Typically used in surface applications

- Better uncoupling characteristics and tend to maintain tighter joints

- Less chance of jamming - Best suited to machines equipped with independent rotation.

After special heat treatment, Jinzen drilling’s Coupling sleeve ensuring the ends touch for efficient energy transmission, suitable for model powerful top hammers and drifter from Atlas Copco, Sandvik, and Boat longyear etc.
