What Is Low Air Pressure DTH Hammer?

What is Low Air Pressure DTH hammer ?

Low air pressure DTH hammer is widely used in geotechnical engineering in a variety of hard, high hardness and other toughness can be poor tough rock, the following characteristics

1. Low pressure DTH hammer is a valve-type center exhaust hammer, the discharge of rock powder effect is good, reducing the re-broken rock slag, reducing the wear of the drill, improve the drilling efficiency.

2. Using the latest rock design theory to design the hammer of the internal structure of the size of the hammer to obtain the ideal energy transfer, a single hammer power, drilling faster, lower air consumption.

3. Selection of the highest quality raw materials and the most advanced processing technology, more stable performance, longer life.

4. It is easy disassembly, low failure, easy maintenance for DTH hammers.

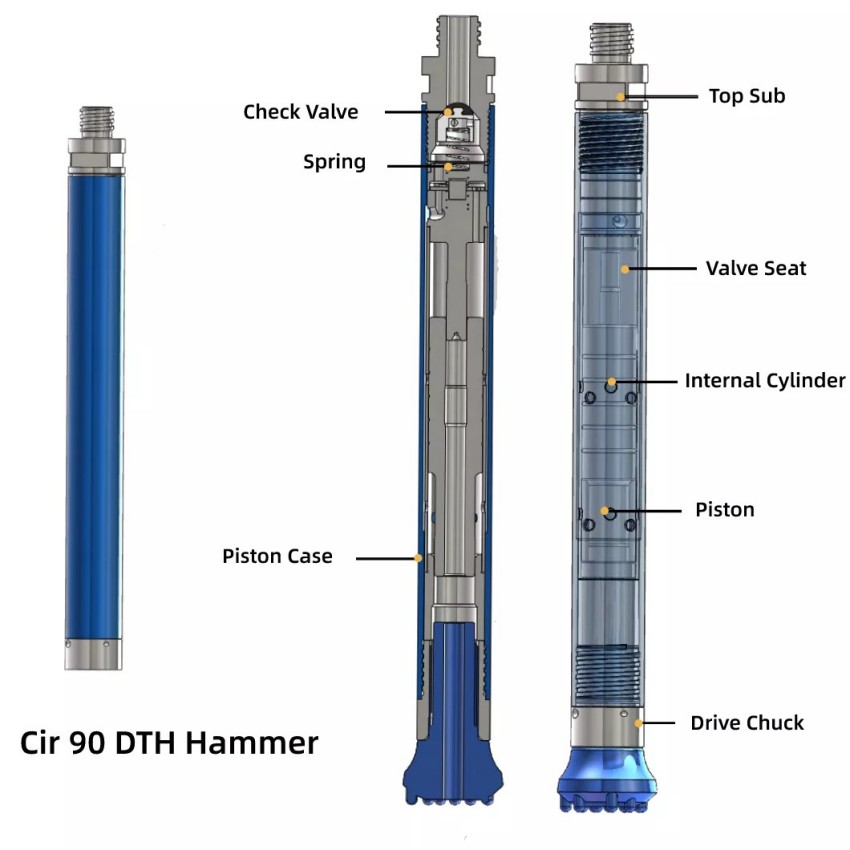

Cir90 DTH Hammer.jpg

Technical specification for low air pressure DTH hammer

TYPE	LENGT H(MM)	TOP SUB THREAD	OUT DIA(MM)	WEIGHT(KG)	BIT DIA(MM)	WORKING PRESSURE(BAR)	AIR CONSUMPTION(M3/MIN)
CIR50	628	F32*8 PIN	44	5	50	4~10	4~8
CIR65	745	F42*10 PIN	61	13	65	4~10	6~10
CIR76	811	F48*10 PIN	66	13.5	76	4~10	6~10
CIR90	855	F48*10 PIN	80	22	90~120	4~12	8~12
CIR90A	840	F48*10 PIN	80	22	90~120	4~12	8~12
CIR110A	871	API 2 3/8 REG BOX	98	33	110~150	6~12	8~12
CIR130A	890	API 2 3/8 REG BOX	112	48.5	130~175	6~12	8~12
CIR150A	904	F70*10 PIN	136	70	150~200	6~12	10~16
CIR170A	1030	F100*28 PIN	156	96	170~250	8~14	12~18
CIR200A	1058	F100*28 PIN	182	130	200~250	8~14	16~20

Application of Low air pressure DTH Hammer

Mining, quarrying, road construction and other projects drilling blasting hole, landslide protection, dam reinforcement, anchoring and other engineering holes, geothermal air conditioning, hydrology, wells and other fields.
