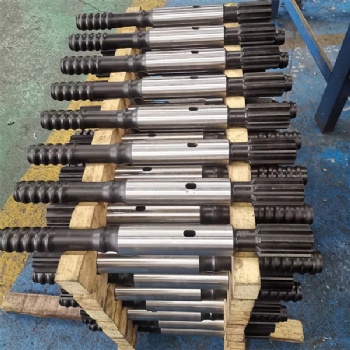

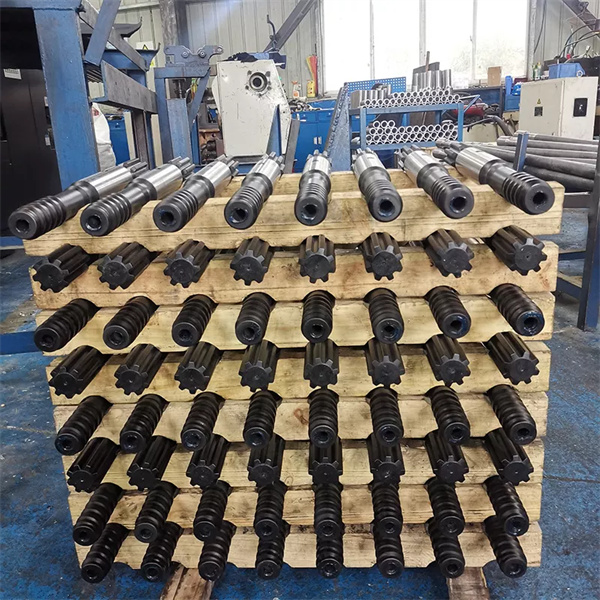

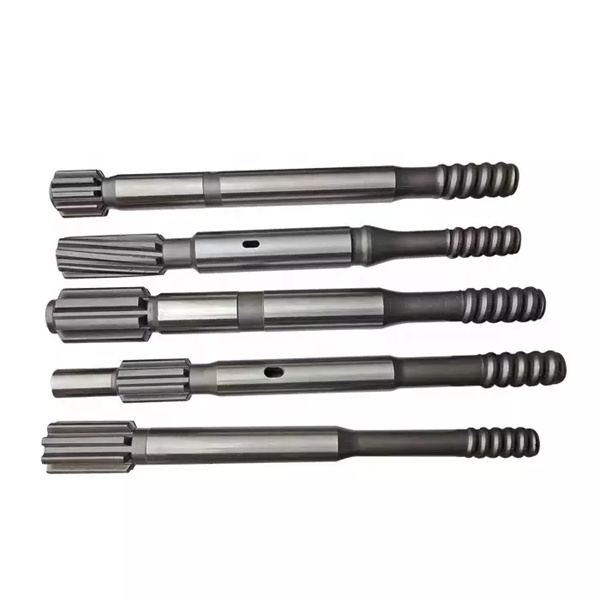

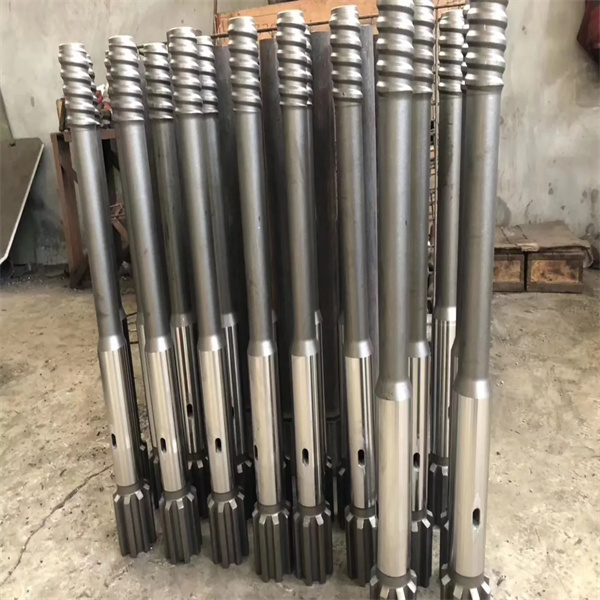

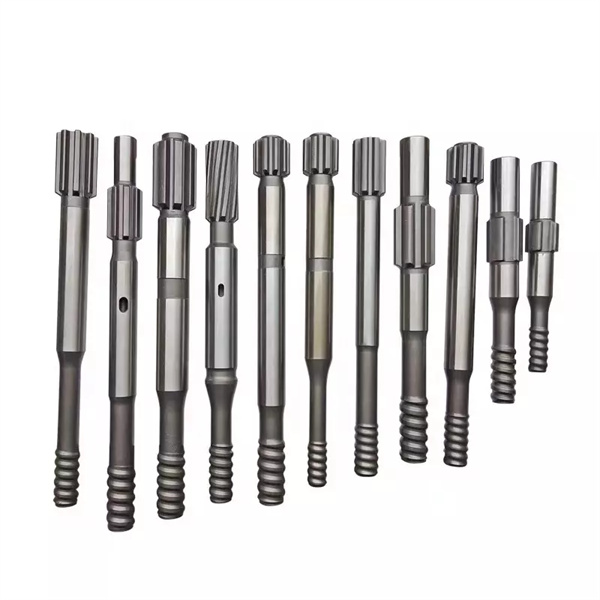

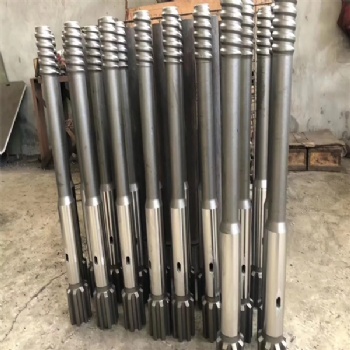

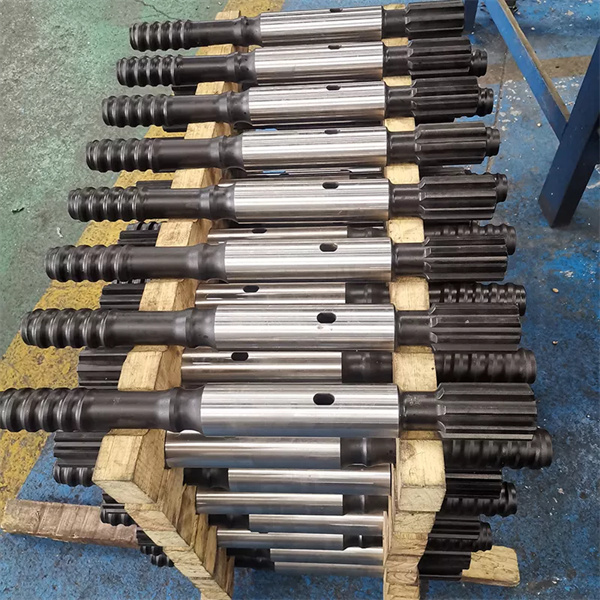

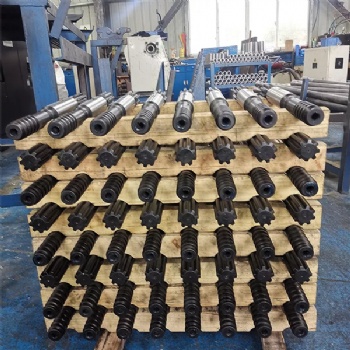

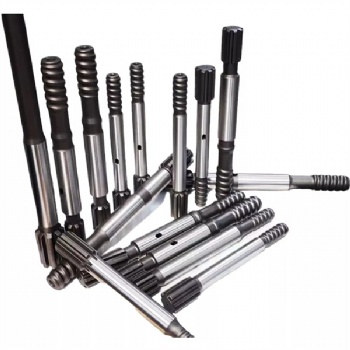

Rock Drilling Rig Spare Parts Shank Adapter
Striking Bar, Shank Adapter For Rock Drill
Length:273mm-885mm
Thread type:R25, R28, R32, R38, T38, T45, T51, SST58, SGT60
Diameter:32mm-70mm
Rock drilling Rig: Atlas Copco, Tamrock, Ingersoll Rand, Furukawa, Boart Longyear, Furukawa, Montabert, Soonsan, Everdigm, others.
Shank adapters are used for transmitting power from the rock drill to the drill stems. Top quality of alloy steels, CNC machining and advanced heat threatment ensure reliable quality
All the shank adapters are carburized, CNC manufactured, and made from premium steel, thus ensure them with superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.
The function of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string.
Shank adapter equivalent to:
Atlas Copco shank adapter
Boart shank adapter
Furukawa shank adapter
Gardner-Denver striking bar
Ingersoll-Rand shank adapters
Montabert shank adapter
SIG shank adaptor
Sandvik shank adapter
Features
1. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
2. Accurate dimension of thread perfectly matches the rock drill
3. Work reliable and very cost-effective
Applications
• Bolting, drifting
• Bench drilling
• Production drilling
Specification
| Item | Thread | Length | Diameter | Weight | Flushing Tube | Part Number |
| mm | mm | kg | mm | |||
| Atlas Copco COP 1440, COP1838 Bolting - SDA | R32 (1 1/4") | 640 | 52 | 7.5 | - | 414832451 |
| Atlas Copco COP 1440, COP 1838 Bolting- SDA, IRIA | R32 (1 1/4") | 640 | 52 | 9.1 | - | 414832452 |
R38 (1 1/2") | 640 | 52 | 8.9 | - | 414832453 | |
| Atlas Copco COP 1440, COP 1550, COP 1838 Bench Drilling | R32 (1 1/4") | 525 | 52 | 5.7 | - | 414832454 |
T38 (1 1/2") | 525 | 52 | 5.9 | - | 414832455 | |
T45 (1 3/4") | 525 | 52 | 6.1 | - | 414832456 | |
| T51 (2") | 525 | 52 | 6.5 | - | 414832457 | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Drifting | R32 (1 1/4") | 435 | 38 | 3.6 | - | 414832458 |
R38 (1 1/2") | 435 | 38 | 3.9 | - | 414832459 | |
T38 (1 1/2") | 435 | 38 | 3.8 | - | 414832460 | |
| Atlas Copco COP 1440, COP1550, COP 1638, COP 1838 Bolting, Drifting | T38 (1 1/2") | 435 | 38 | 3.9 | - | 414832461 |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Bench Drilling | R32 (1 1/4") | 585 | 38 | 4.2 | - | 414832462 |
R38 (1 1/2") | 525 | 38 | 4.3 | - | 414832463 | |
T38 (1 1/2") | 525 | 38 | 4.3 | - | 414832464 | |
| Atlas Copco COP 1638, COP 1838AW Drifting | R38 (1 1/2") | 455 | 38 | 4.1 | - | 414832465 |
T38 (1 1/2") | 455 | 38 | 4.1 | - | 414832466 | |
| Atlas Copco COP 1638, COP 1838AW Longhole Drilling | R32 (1 1/4") | 525 | 38 | 4.3 | - | 414832467 |
| T38 (1 1/2") | 525 | 38 | 4.5 | - |
