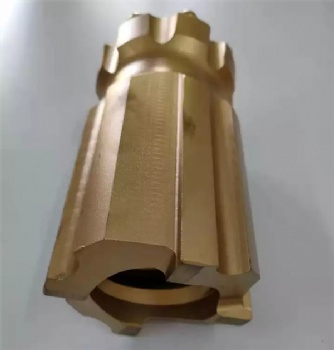

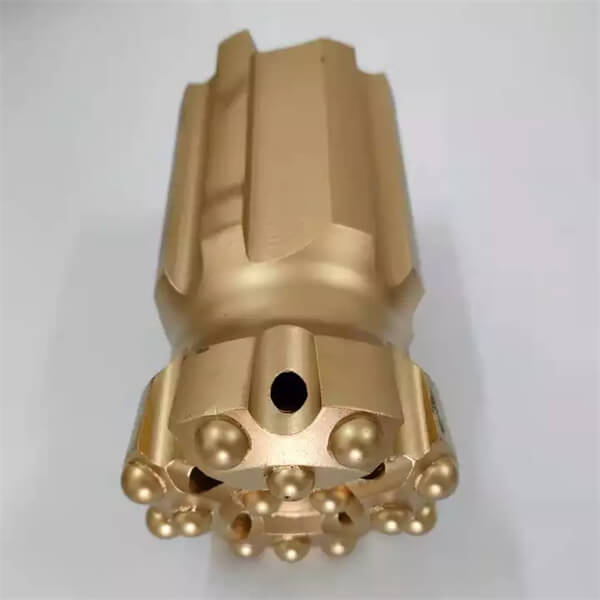

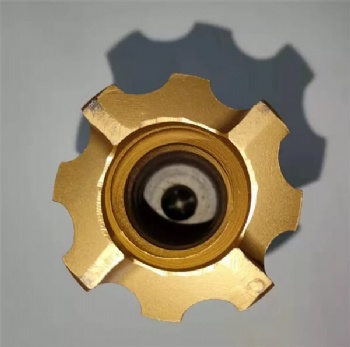

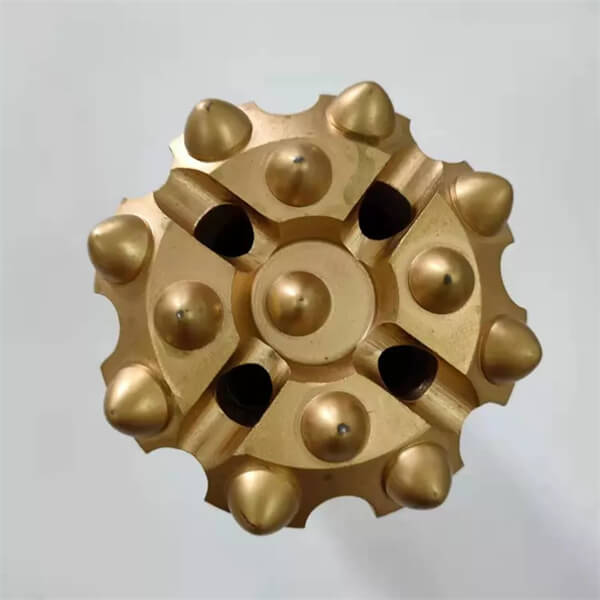

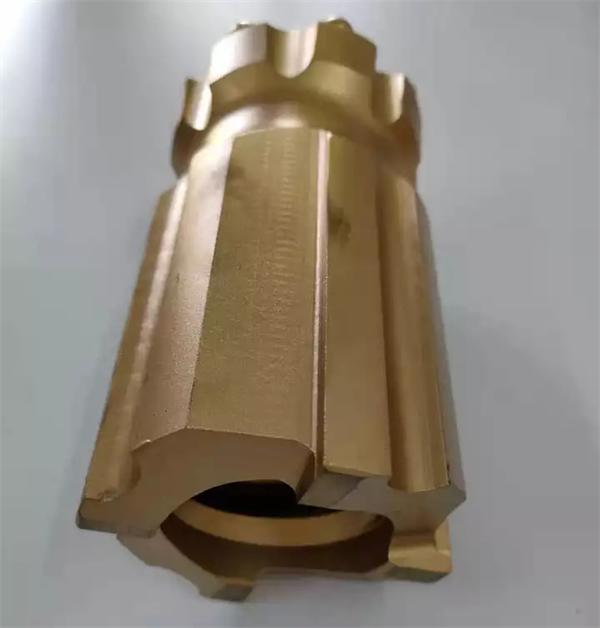

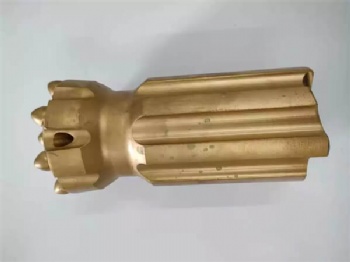

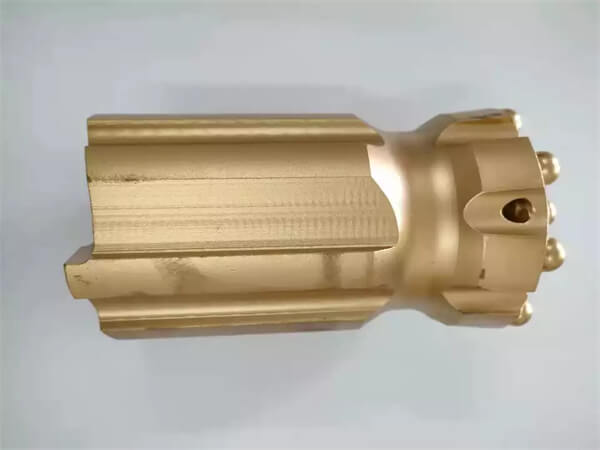

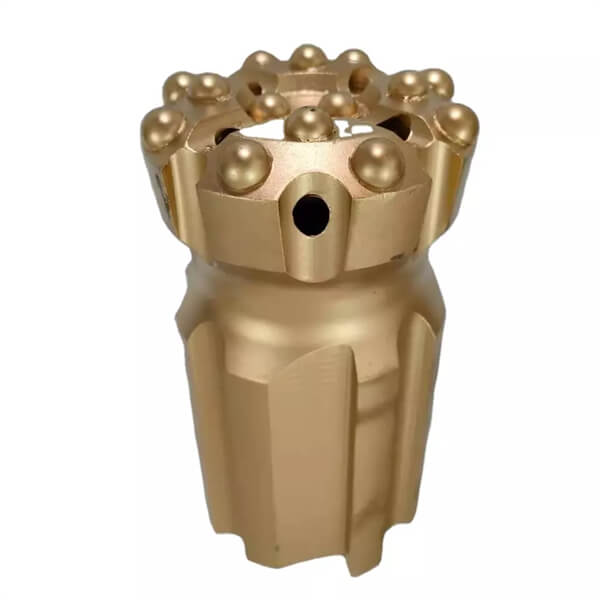

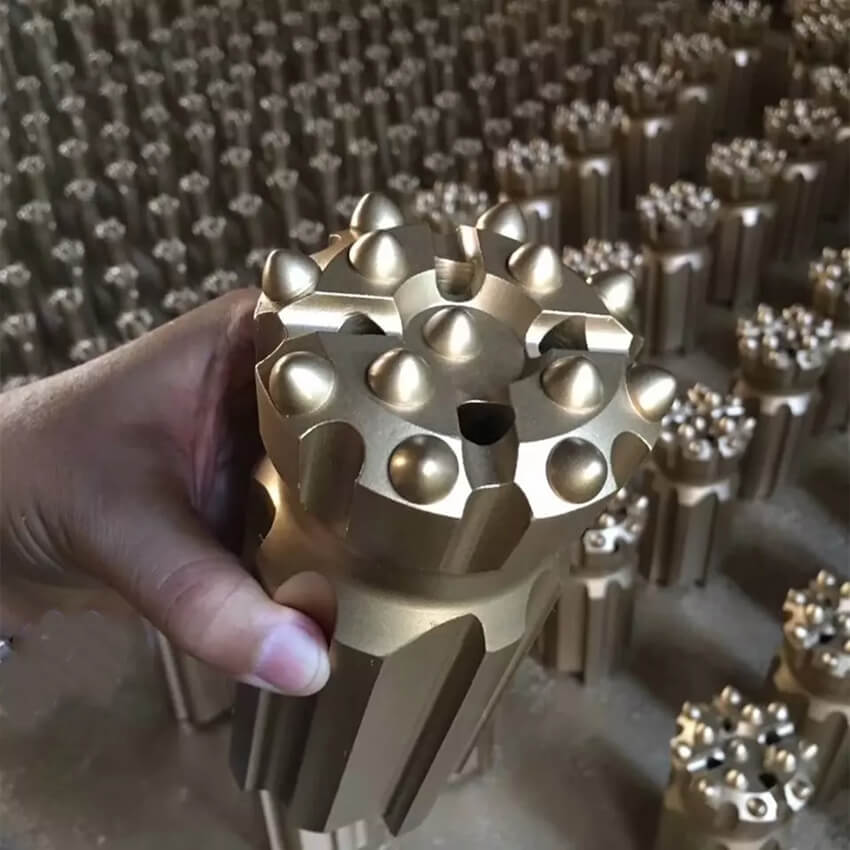

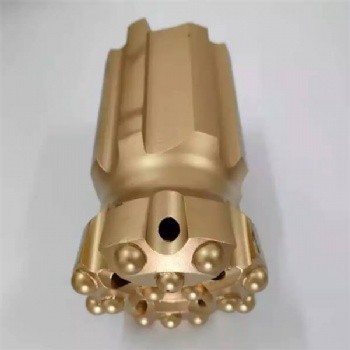

89mm T45 Retrac Drill Bit

1, Material : Tugestun Carbide + Top quality Alloy Steel
2, Workmanship : Hot pressed & Cold pressed
3, Advantage : Quality can compare with world's famous brand .
4, Head diameter: T45-89mm, T45-102mm, T45-115mm, T45-127mm
5, Face&Skirt type Face: Flat front & Drop center. Skirt : Normal skirt & Retrac skirt
6, Button bit type: Hemispherical & Parabolic & Conical & Ballistic
Application Tunnel , Blasting , Mining , Quarrying

Description
Inquiry

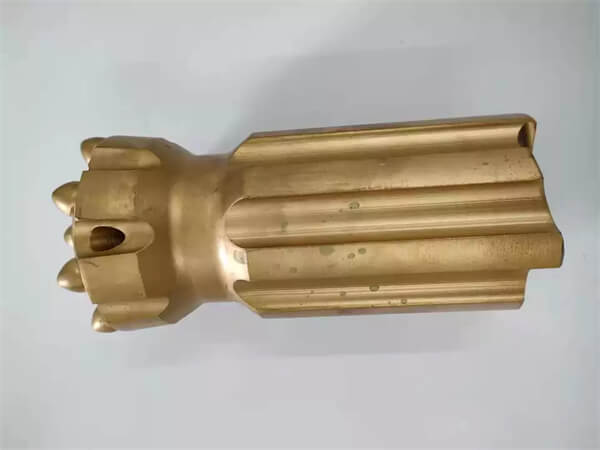

Retrac button bits are mainly used in loose rock mass with relatively broken rock. The retrac skirt design can assist in retrieving the drill tool, reduce the phenomenon of bit stuck and buried, and help improve the straightness of the borehole.

As a China retrac button bit supplier, we can provide you with high-quality button bit includes retrac rock drill bits, such as R25 retract button bit, R28 retract button bit, R32 retrac button bits, R35 retrac drilling bit, R38 retrac drill bits, T38 retract drill bit, T45 retract bit, T51 retract drill bit, GT60 retract button bit, ST58 retrac button bit, ST68 retrac button bit...

Retrac button bits are made of high-quality steel and cemented carbide as raw materials, so they have a long service life. And the use of retrac bits minimize the loss of impact energy during transmission. In addition, the advanced button fixing technology makes the fixing force uniform and not easy to loose buttons. Meanwhile, the use of retract drill bits also ensures the perpendicularity of the borehole, so that the impact energy is concentrated on the rock and the drilling efficiency is improved.

No matter it is mining, rock drilling, or tunneling and blasting, Jinzen retract button bits are suitable for all these situations.

T45 Button bits, retract skirt
Diameter		T.C buttons		Flushing hole		Angle	Part Number	Weight
mm	inch	Gauge x mm	Front x mm	Side	Front	Gauge		Kg
76	3	6x12	4x11	1	2	40°	RFF76T45B642	3.08
76	3	6x13	3x12,1x11	1	3	35°	RDC76T45B643	3.16
76	3	8x12	4x12	1	2	35°	RFF76T45B842	3.15
76	3	8x12	5x11	1	2	35°	RFF76T45B852	3.09
89	31/2	8x13	4x13	1	2	35°	RFF89T45B842	4.52
89	31/2	8x13	4x11,1x11	1	4	35°	RDC89T45B854	4.35
89	31/2	8x13	4x11,2x9	1	4	35°	RDC89T45B864	4.28
89	31/2	8x14	5x12	1	2	35°	RFF89T45B852	4.58
89	31/2	8x13	6x12	1	2	35°	RFF89T45B862	4.42
89	31/2	9x12	6x10	1	3	35°	RFF89T45B963	4.62
102	4	8x15	4x15	1	2	35°	RFF102T45B842	7.38
102	4	8x14	4x12,1x12	1	4	35°	RDC102T45B854	7.25
102	4	8x14	4x12,2x12	1	4	35°	RDC102T45B864	7.28
102	4	8x14	6x12	1	2	35°	RFF102T45B862	7.15
102	4	9x13	8x13	1	3	35°	RFF102T45B983	7.42
115	41/2	8x15	4x13,2x13	1	4	35°	RDC115T45B864	9.54
115	41/2	8x15	7x14	1	2	35°	RFF115T45B872	9.75
115	41/2	9x14	8x14	1	2	35°	RFF115T45B982	9.72
127	5	8x16	7x14	1	2	35°	RFF127T45B872	12.15
127	5	9x16	8x14	1	3	35°	RFF127T45B983	14.42
